$25,215.00

1. Pat-Trap Singles-Doubles c/w Step down

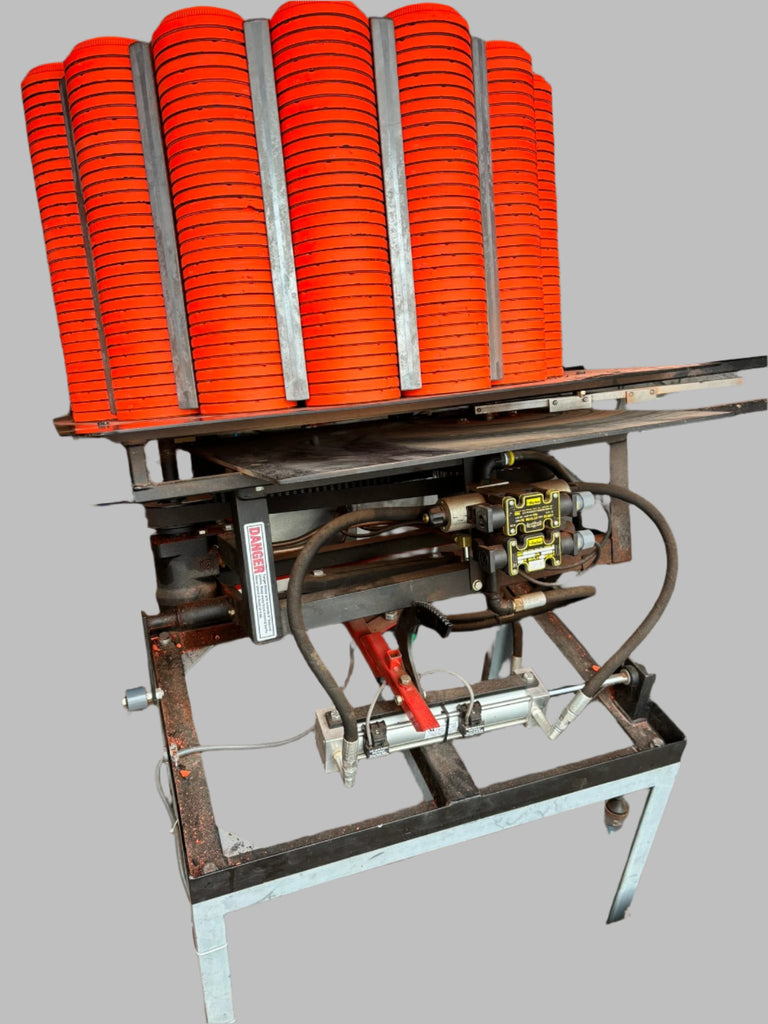

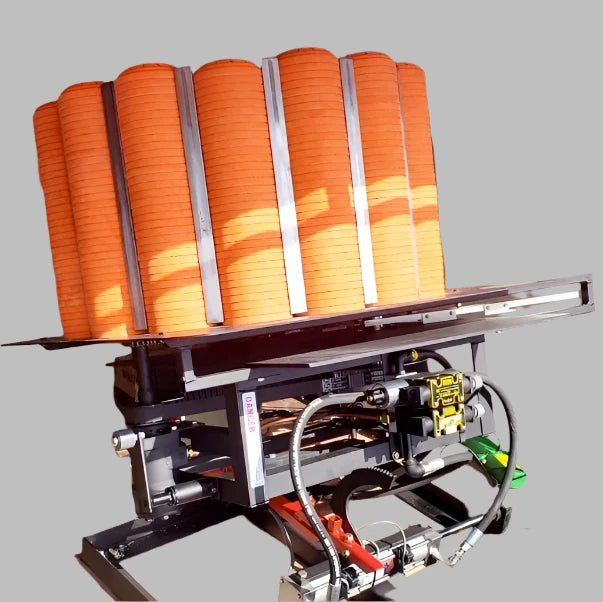

Pat Trap Singles-Doubles

NOTE Price is in NZD plus GST. Dose not include Freight or Duties Ex USA.
  • More registered targets are thrown from Pat-Traps than from any other automatic trap machine!
  • Holds up to 540 standard Ø110 mm International clay targets.
  • Switch from "Singles" to "Doubles" in seconds and vice versa.
  • Switch from "Singles" to "Doubles" in seconds and vice versa
  • Operates from standard 230VAC, 15 Amp, Power has 230>110 Step down Transformer (Supplied)
  • Electronically operated solenoid release for "Instant response"
  • 3/4 HP Direct Drive Hydraulic Pump that uses 5W20 oil
  • High Quality "Soft-Shift" Hydraulic Valves for Smooth Operation of Oscillation Cylinder
  • Vibration Free
  • Sealed Ball Bearings
  • Side-Loading Turret Available
  • Base Dimensions:  30" W x 21.5" L
  • Height Requirements:  41" (Minimum) to 43" (Preferred) from pedestal to ceiling inside trap house
  • Use with manual pull cord or accepts most voice or wireless release systems
  • No gearboxes to break down or complex electronics that overheat
  • No more target guide springs to create target dust for cleaner operation
  • "G" Series electronics are simpler than "SW" Series for improved reliability
  • Most consistent target presentation
  • Made in the USA
  • US Patent Numbers 5249563 and 6176229
  • One Year Parts and Labour Warranty
  • A fully crated Pat-Trap is 227kg. Machine and pump weighs 159kg. Turret weigh 23kg. Pump weight 23kg

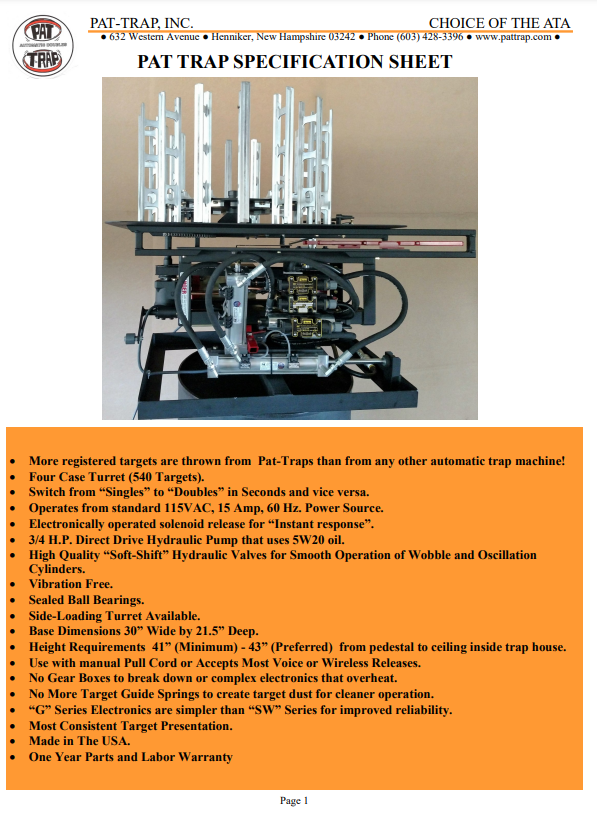

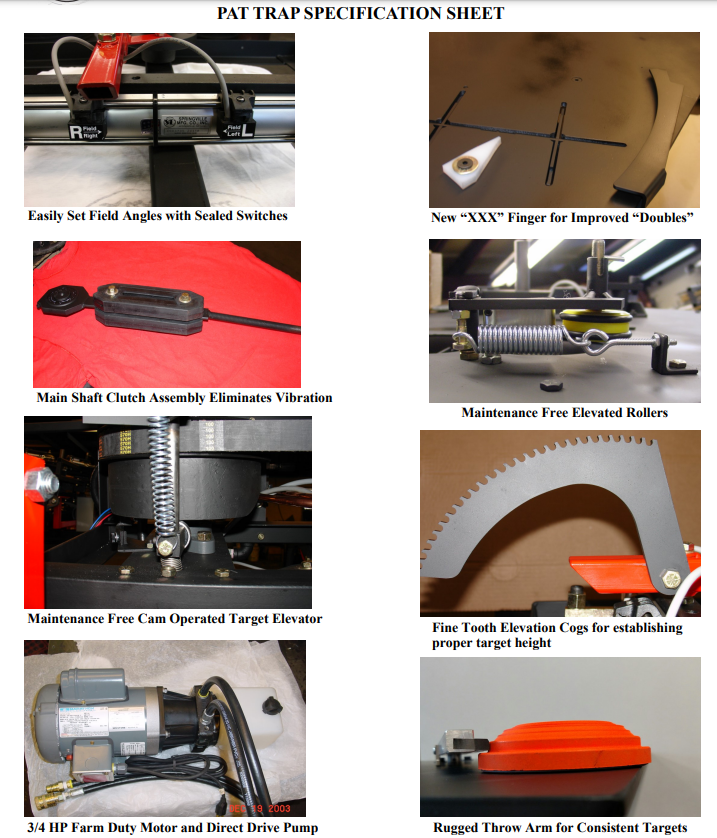

  • See Pat-Trap Brochure
  • Pat-Trap Manuals
