Pat Trap Singles-Doubles Wobble Trap

Wobbler Trap has the extra Hydraulic Vertical Ram for Ball Trap or Continental.

• More registered targets are thrown from Pat-Traps than from any other automatic trap machine!
• Holds up to 540 standard Ø110 mm International clay targets.
• Switch from "Singles" to "Doubles" in seconds and vice versa c/w Doubles Level Plate.
• Operates from standard 230VAC, 15 Amp, Power has 230>110 Step down Transformer (Supplied)
• Electronically operated solenoid release for "Instant response"
• 3/4 HP Direct Drive Hydraulic Pump that uses 5W20 oil
• High Quality "Soft-Shift" Hydraulic Valves for Smooth Operation of Wobble and Oscillation Cylinders
• Vibration Free
• Sealed Ball Bearings
• Side-Loading Turret Available
• Base Dimensions:  30" W x 21.5" L
• Height Requirements:  41" (Minimum) to 43" (Preferred) from pedestal to ceiling inside trap house
• Use with manual pull cord or accepts most voice or wireless release systems
• No gearboxes to break down or complex electronics that overheat
• No more target guide springs to create target dust for cleaner operation
• "G" Series electronics are simpler than "SW" Series for improved reliability
• Most consistent target presentation
• Made in the USA
• US Patent Numbers 5249563 and 6176229
• One Year Parts and Labour Warranty
• A fully crated Pat-Trap is 227kg. Machine and pump weighs 159kg. Turret weigh 23kg. Pump weight 23kg

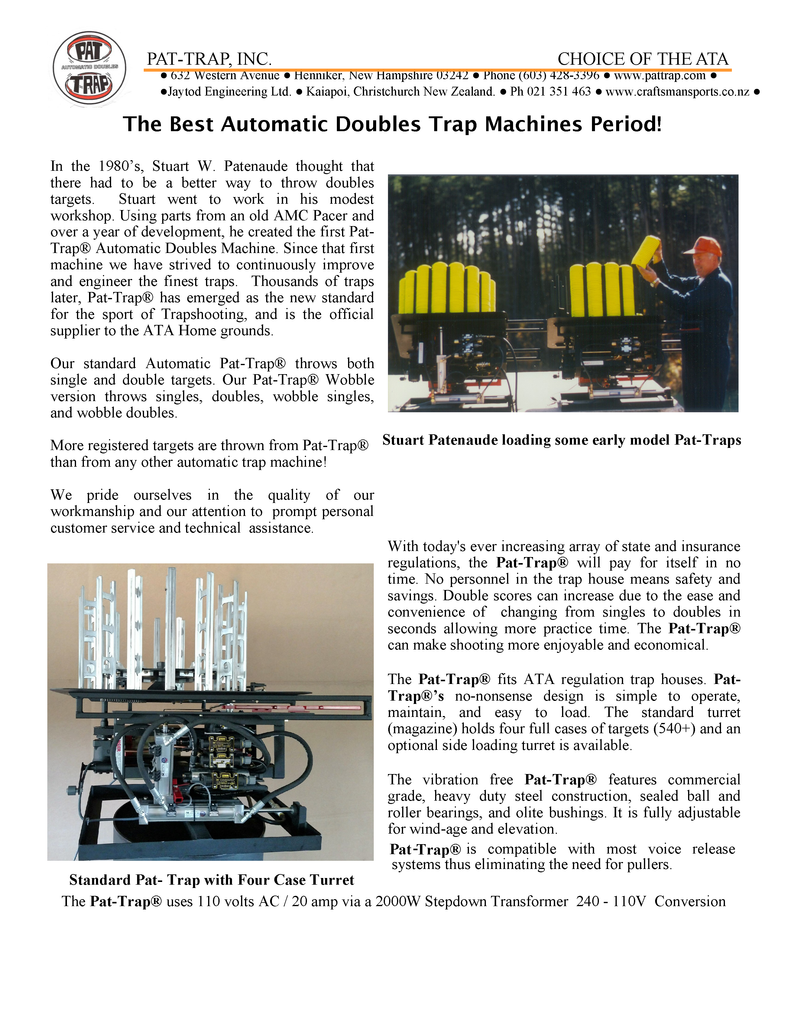

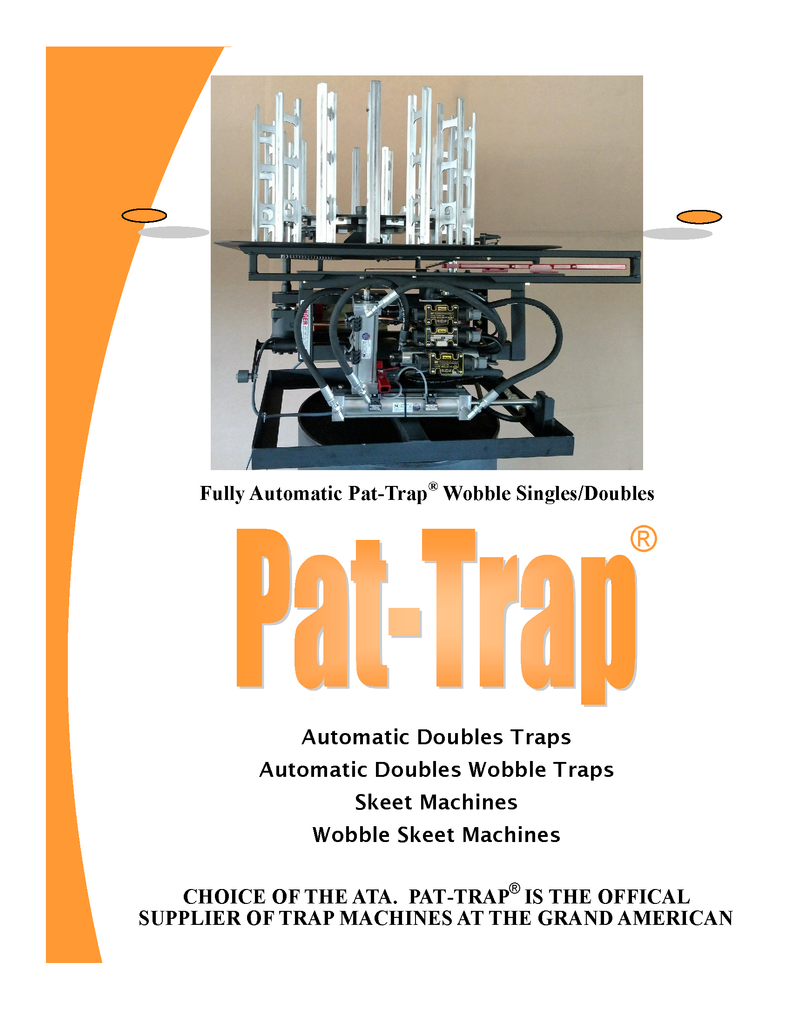

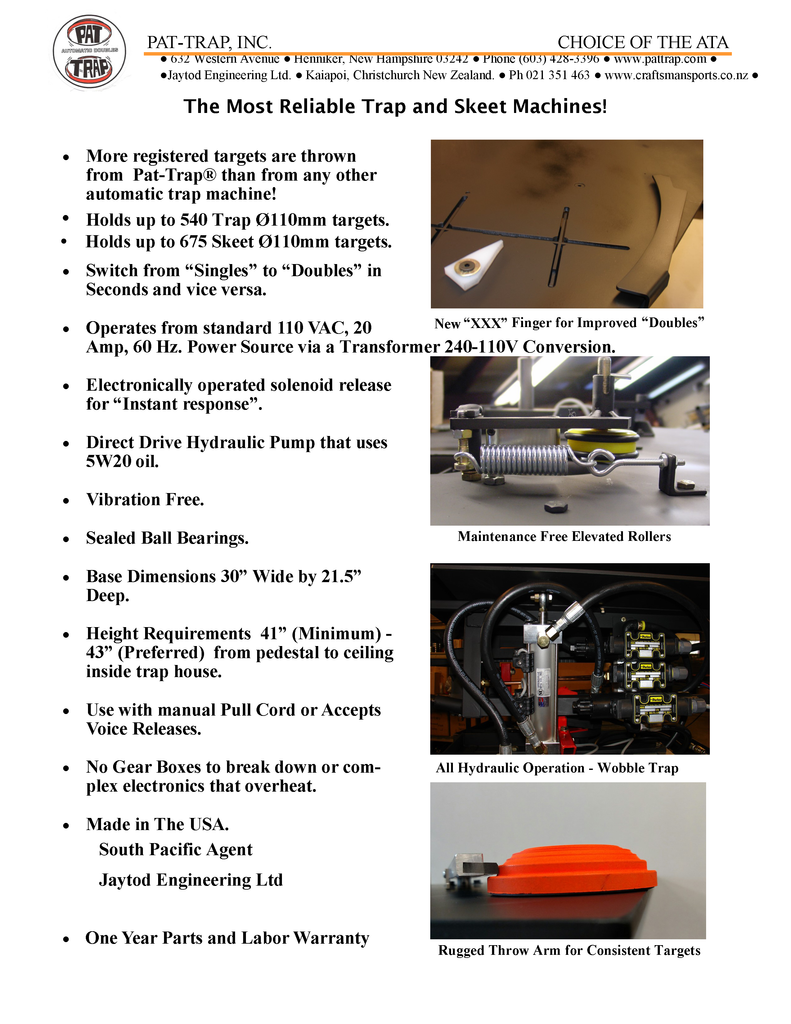

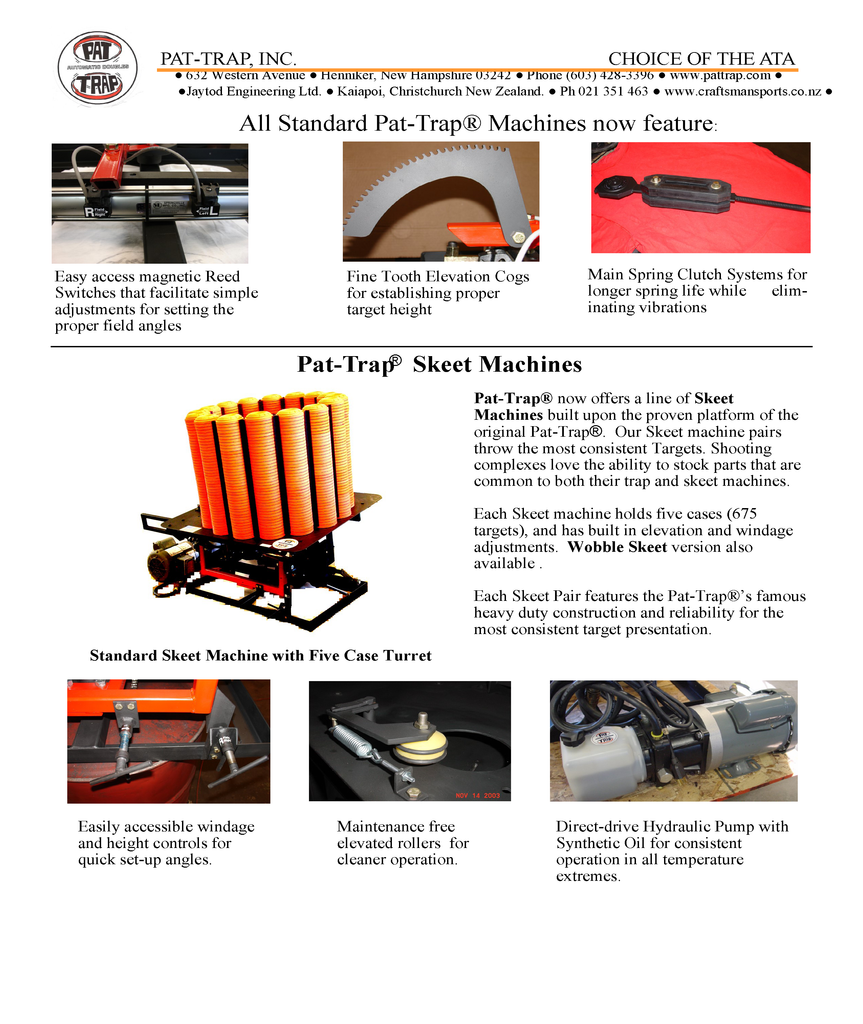

• See Pat-Trap Brochure
• Pat-Trap manuals
