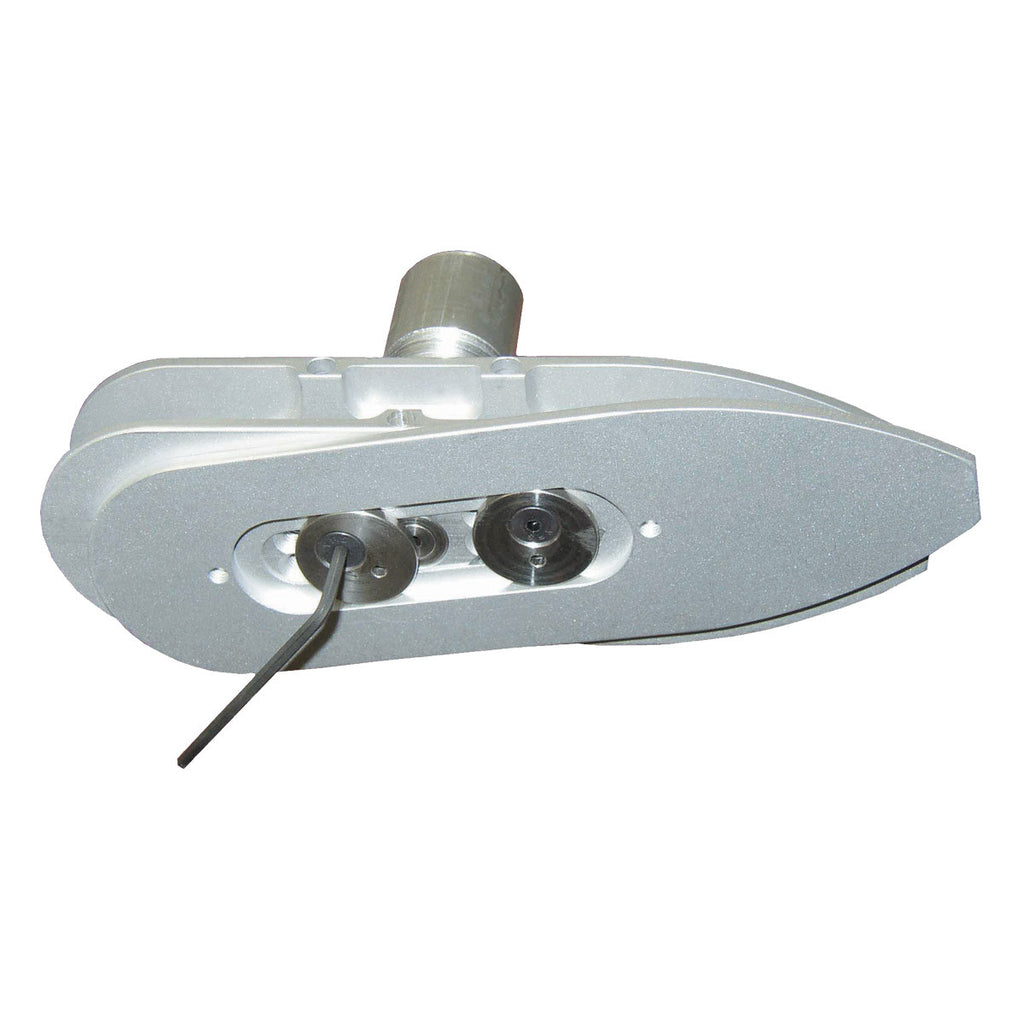

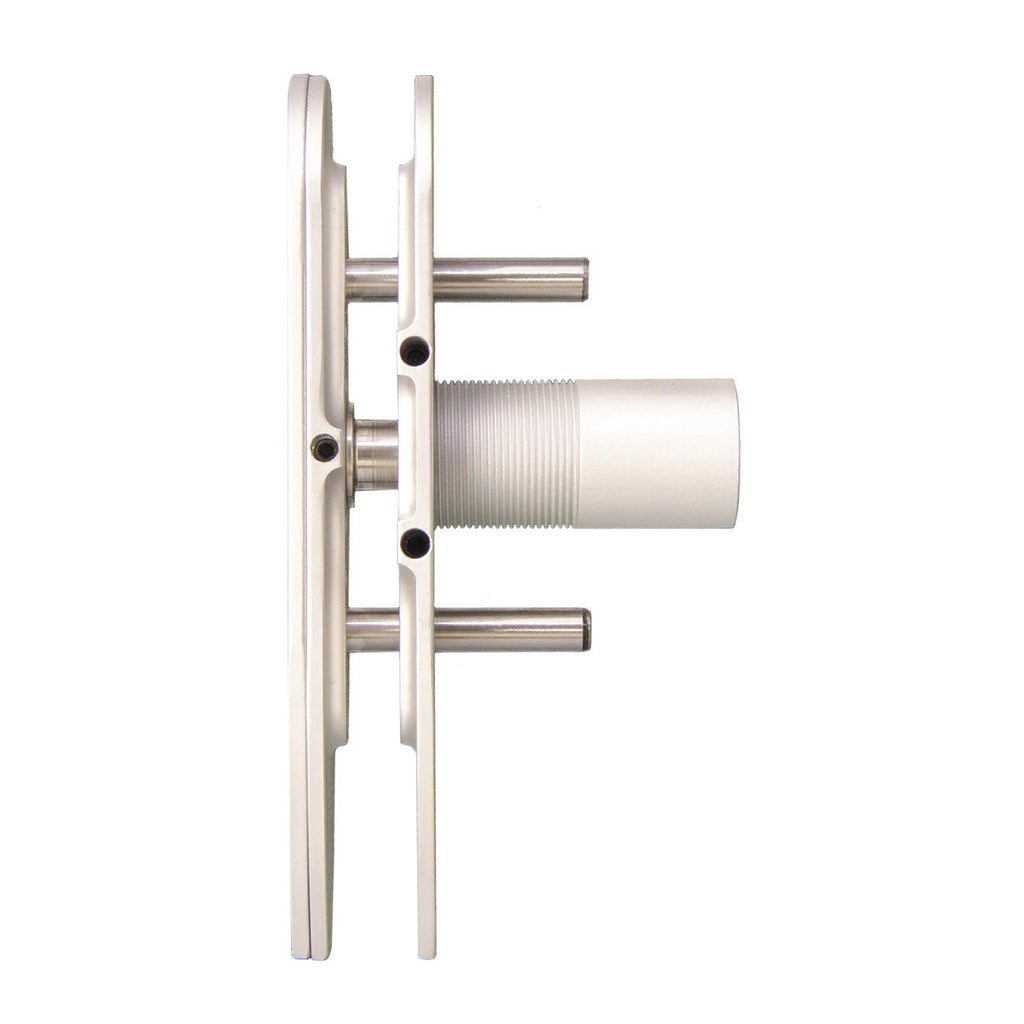

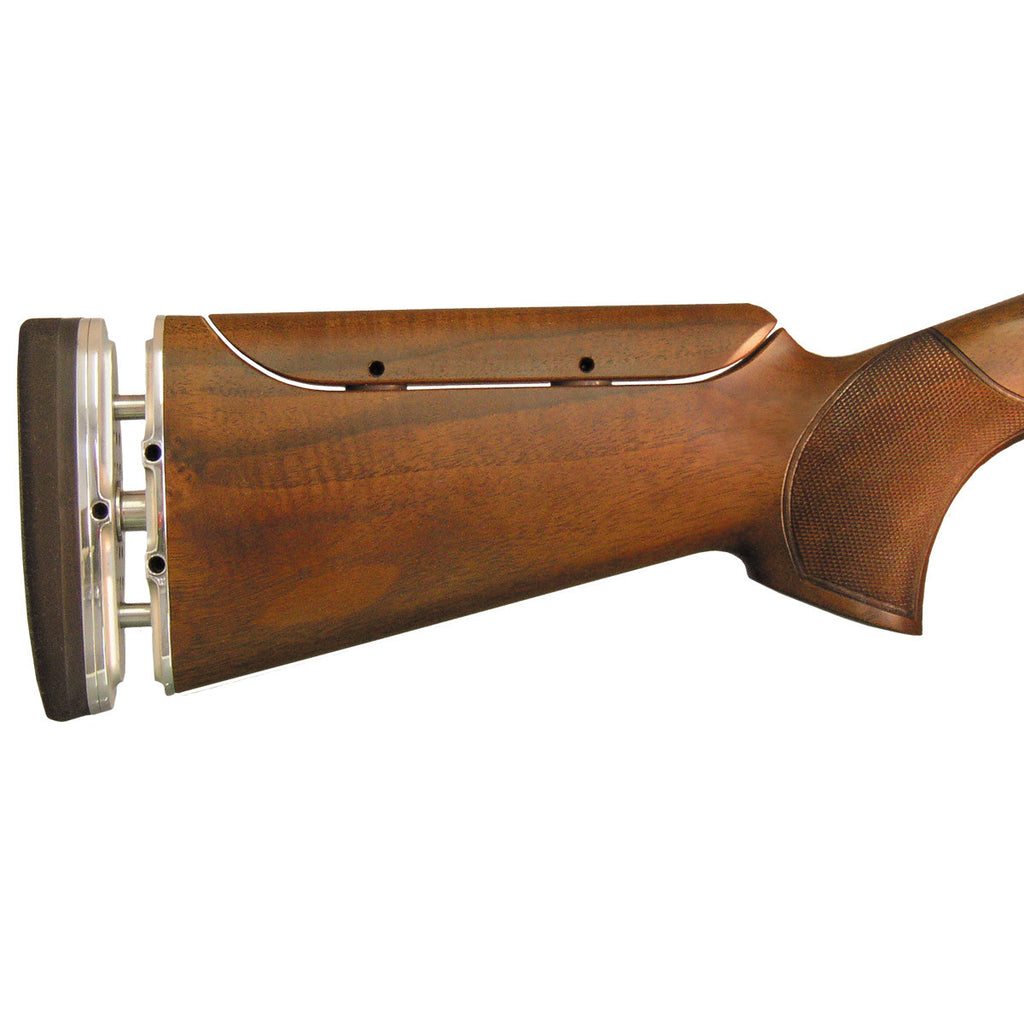

The GraCoil is a compression butt plate with an adjustable tension setting and adjustable pad plate. Adjustments for length, drop, and rotation allow factory stocks to fit any shooter's style. Tension will adjust from 6kg to 32kg (14 lb. to 70 lbs. with a maximum stroke of 8mm (5/16") which produces a hardly detectable response time, with no distractions between shots. Moving parts slide on Teflon® liners for a smooth and trouble free motion.

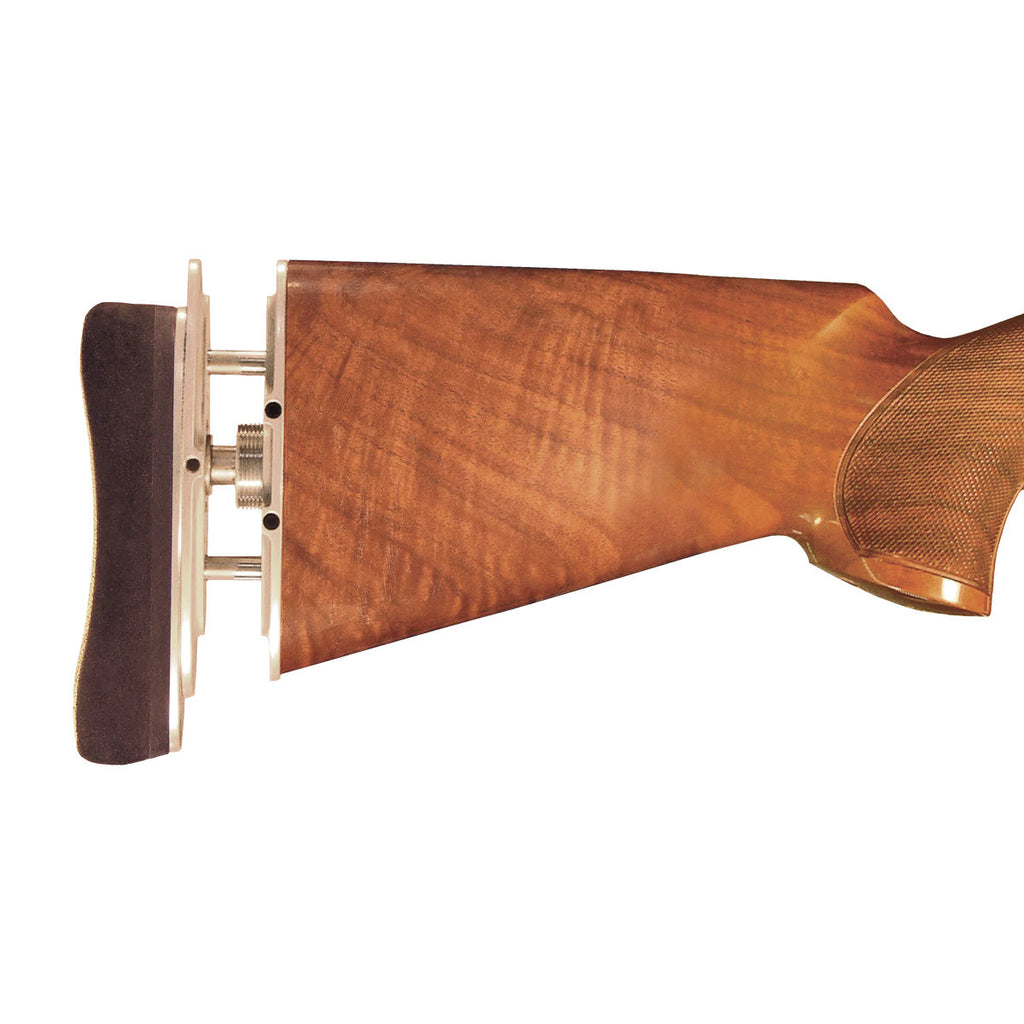

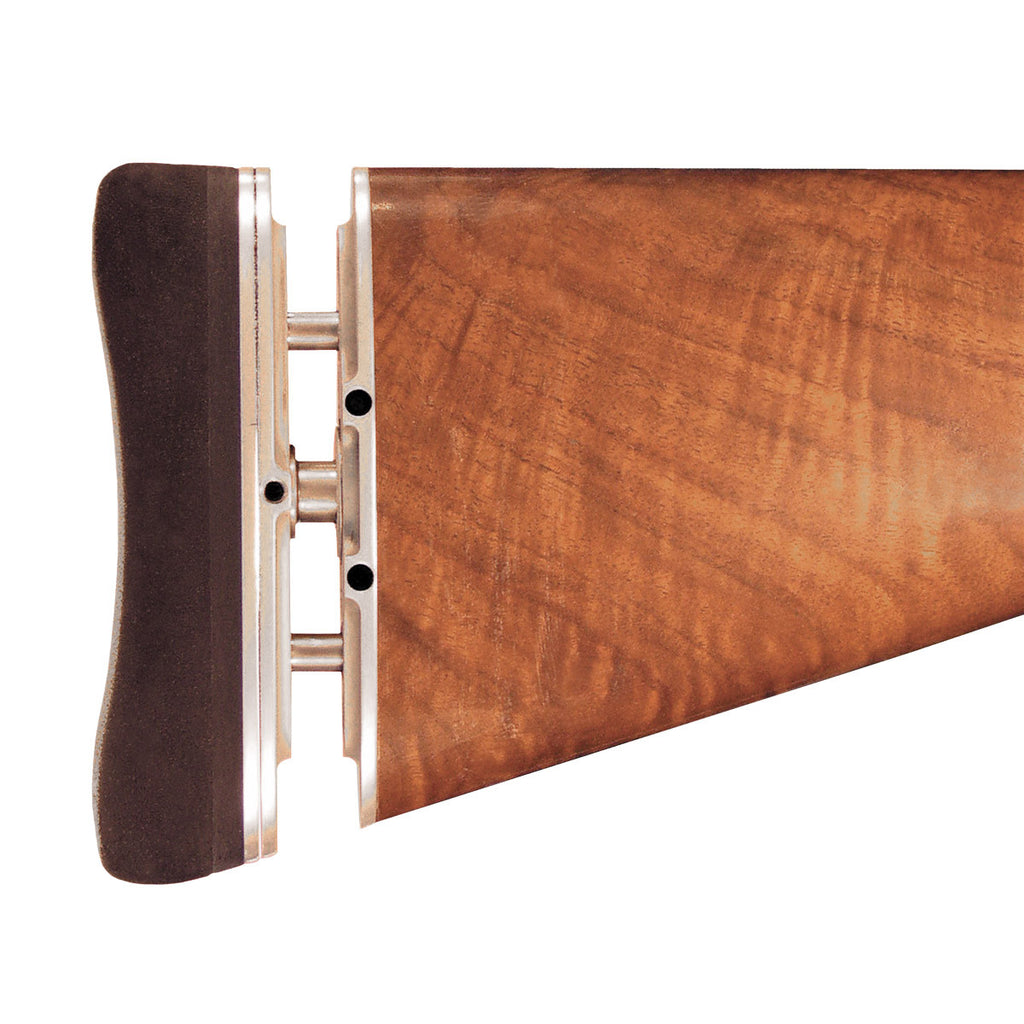

The GraCoil LP offers the same features as the standard GraCoil, but with the added feature: the "length of pull" adjustment, which allows for the stock length adjustment up to 25mm (1").

The GraCoil adds 25mm (1") to the stock length, and requires the stock to be shortened in most cases.

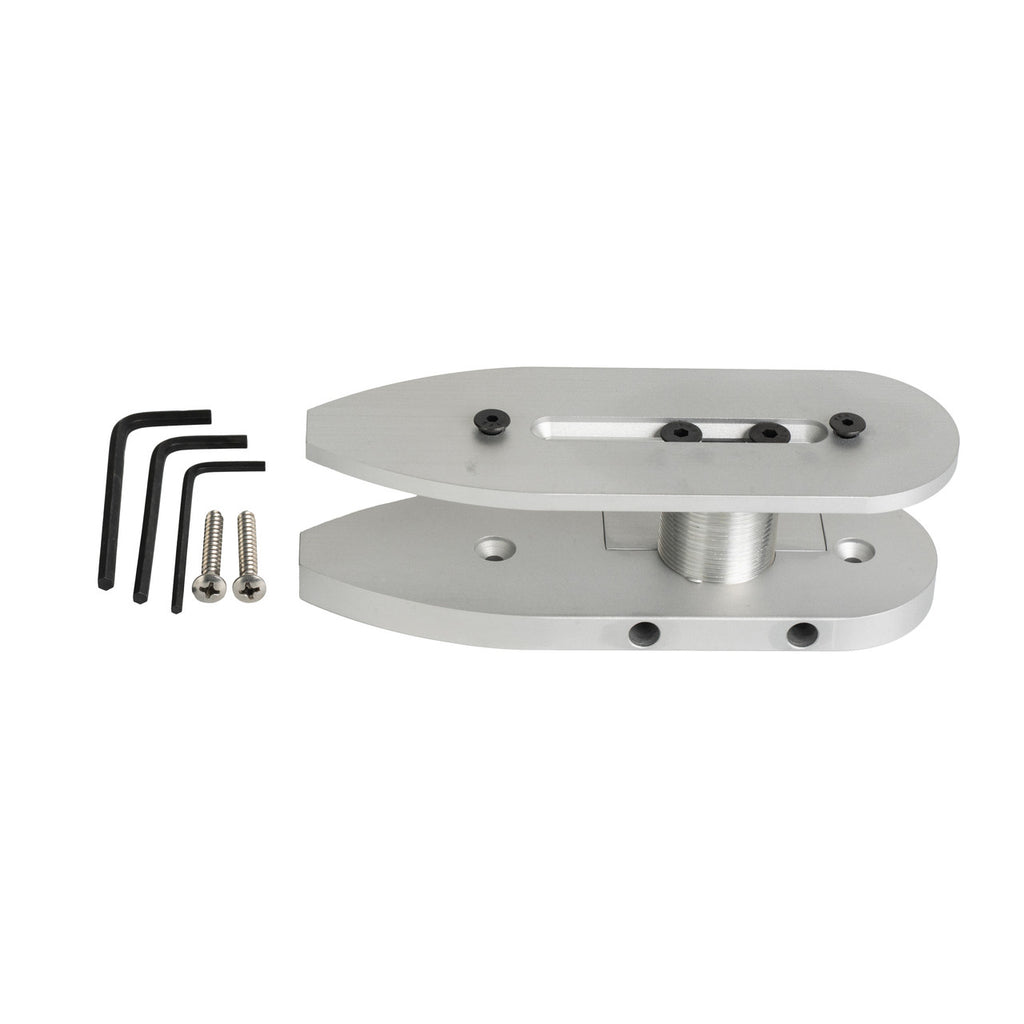

Its construction is all aluminum and stainless steel and comes complete with screws and wrenches.

It uses very little lubrication, and no maintenance is required.

Factory installation available. Pad not included.

Dimensions:

Plate Dimensions:

Length: 160mm (6.25") Width: 50mm (2")

Spring Body Dimensions:

Diameter: 26mm (1-1/16") Length: 54mm (2-1/8")

Guide Pin Dimensions:

Diameter: 8mm (5/16") Length: 52mm (2") Overall 25mm (1") protruding from the stock plate
